Vertical joint profiles
RETRO PANEL 25
Classic look and modern shape
Standing seam roof panels are a solution that harks back to the traditional overlay. The need for innovation has led to the development of a product characterised by several improvements. The RETRO standing seam roof panel combines installation functionality, speed and simplicity with a unique product appearance that meets the best aesthetic standards.
Video

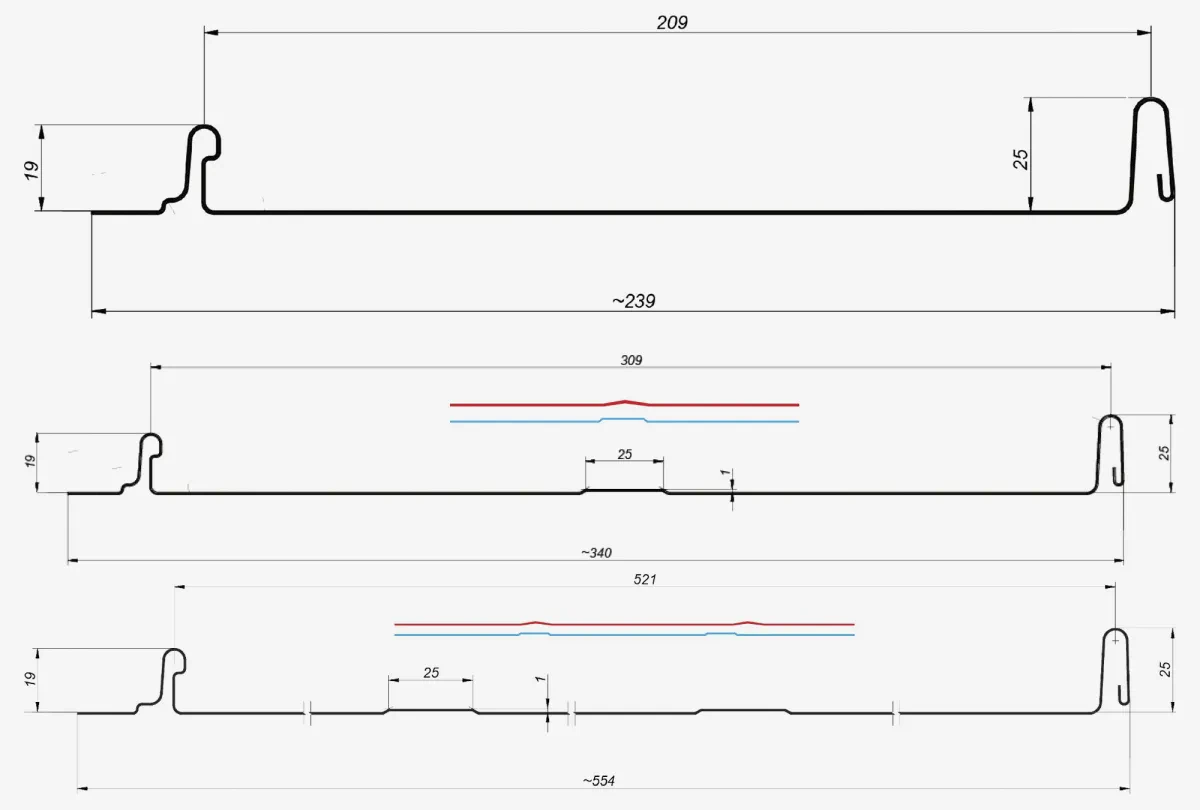

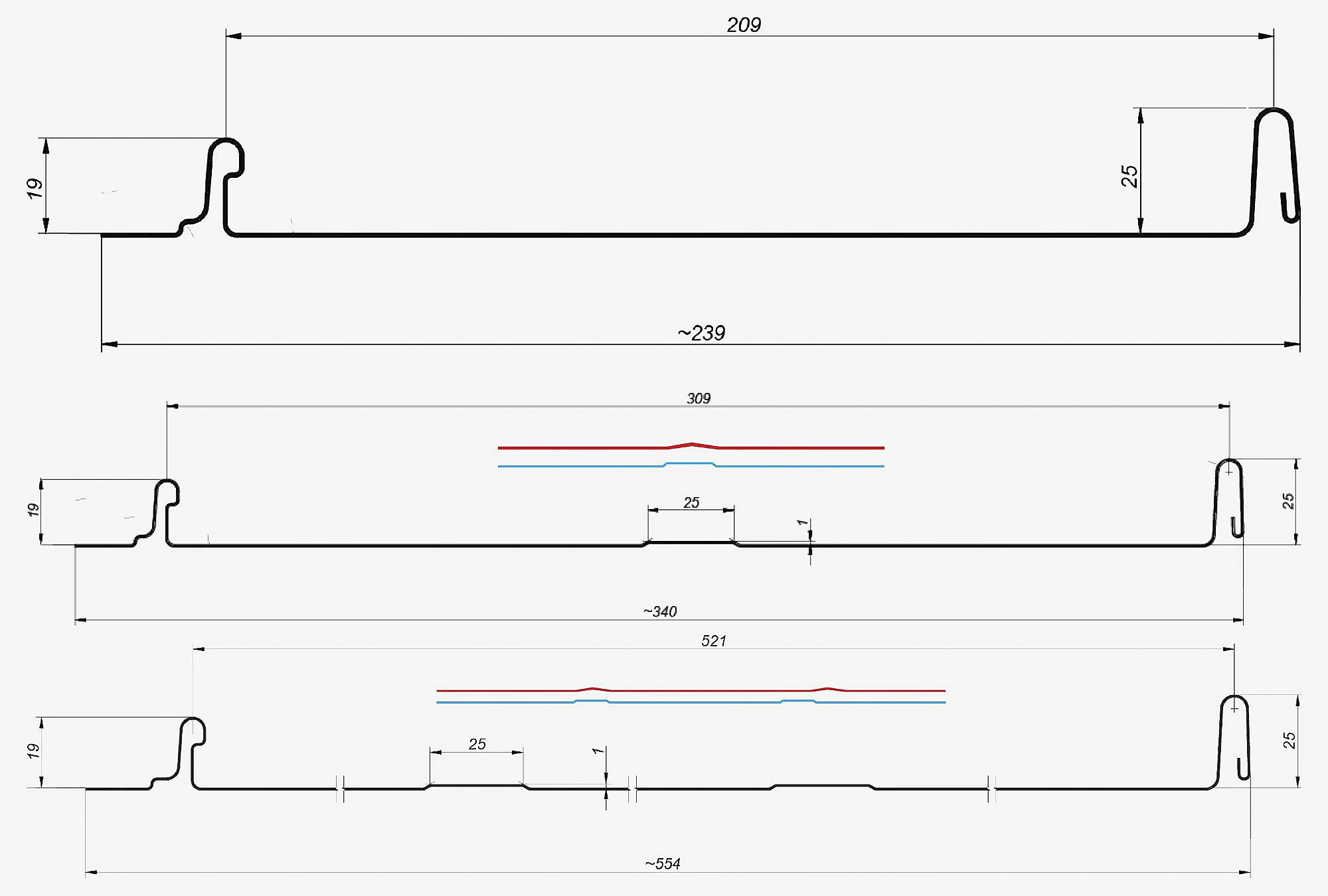

Technical details
Overall width
~239 / ~340 / ~554 mm
Effective coverage width
209 / 309 / 521 mm
Finished product thickness (steel)
0.5 mm
Finished product thickness (aluminium)
0.6 mm
Minimum sheet length
1400 mm
Recommended length
up to 8 t.m.
Curb height
25 mm
Click height
19 mm
We focused on elegant appearance, durability and economy
Combining these properties in one product gives you great possibilities for roofing

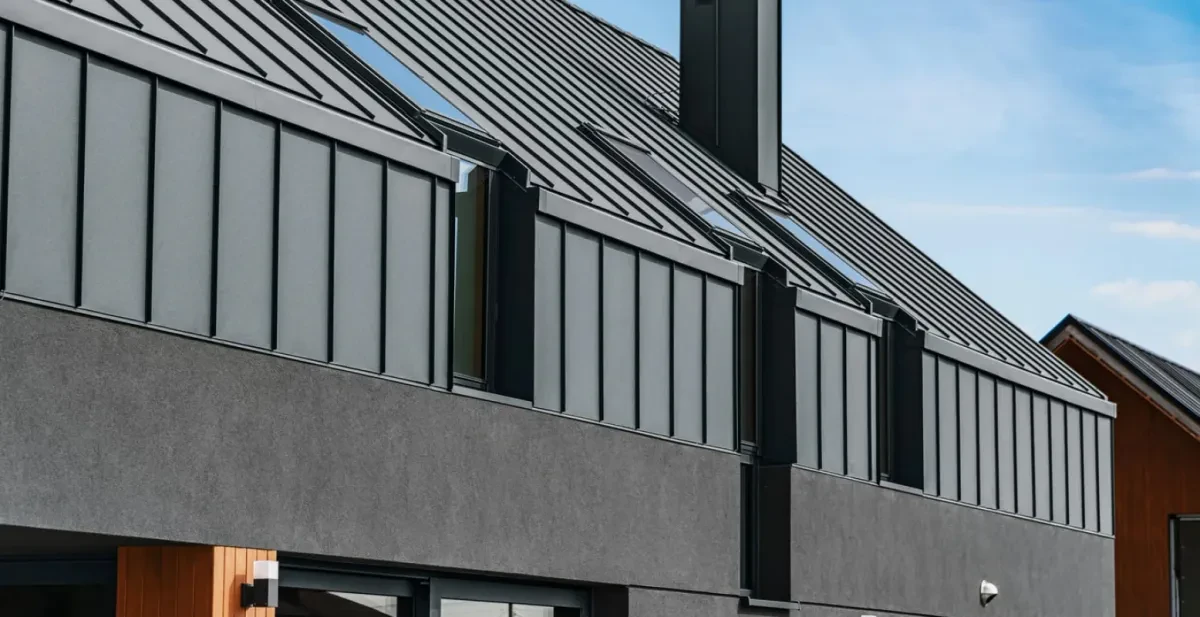

Depending on the desired result, you can emphasise the traditional style of the building or highlight its modern character. The classic and minimalist appearance as well as the straight lines make RETRO roof panels perfect for renovation of historic buildings, modern construction, as well as for sacred and public buildings. In contemporary architecture, it is used in two ways: as a roofing material and as an original facade finish, in horizontal and vertical layouts
Simple and quick installation, high aesthetics
The fixing of the panels allows them to be joined quickly and securely, while maintaining a high level of airtightness, which gives them an advantage over double-seamed sheets.
The mounting holes along the seam allow the fixing screws to overlap the adjacent panel, which has a positive effect on the aesthetics of the roof covering. The increased rigidity allows the panel to be installed on the battens without the use of tilt mouldings. An additional advantage is the possibility of using the roof panel with the Hydrocontrol system, which provides effective protection against moisture.
Two basic panel models
Panel Retro 25 and Panel Retro 38
The panels are ideal for renovating historic buildings (manor houses, churches, stone buildings) that meet the requirements of modern architectural forms. In addition, as roofing sheets of excellent durability, they are an economically attractive alternative to other roofing materials made of metal sheets.
Retro 25 options:
- Three width versions
- available in a full range of colours
- ribless, single or double rib
- seam height 25 mm
Retro 38 options:
- two width versions
- available in a full colour palette
- option without ribs, with one or two ribs
- seam height 38 mm
Hydraulic control system
Advantages and benefits of using a hydraulic control system
- Absorption of moisture inside the roof covering by condensation of water vapour,
- additional protection against corrosion, especially in buildings with an active chemical environment (e.g. stables with livestock),
- higher strength than standard insulation and vapour barrier, resistance to mechanical damage (tearing), non-deteriorating,
- easy to keep clean (cleaning with standard equipment such as a hose or pressure washer),
- increases the acoustic insulation of the roof,
- non-flammable and resistant to deterioration by bacteria
Roof tile profile
Paints and raw material
STEEL SERVICE CENTRE (SSC)
HYDROCONTROL
SPS
Available colors
Poliester Standard (RAL)
- RAL 3005
- RAL 3009
- RAL 3011
- RAL 8004
- RAL 5010
- RAL 6020
- RAL 6029
- RAL 7016
- RAL 7024
- RAL 8017
- RAL 8019
- RAL 9005
- RAL 9006
- RAL 9007
- RAL 9010
Poliester Standard (MAT)
- RAL 3005
- RAL 3009
- RAL 3011
- RAL 5010
- RAL 6020
- RAL 6029
- RAL 7016
- RAL 7024
- RAL 8004
- RAL 8017
- RAL 8019
- RAL 9005
- RAL 9006
- RAL 9007
- RAL 9010
Super Poliester Standard R-MAT
- RAL 9007
- RAL 7016
- RAL 9005
Pladur® Wrinkle mat
- Pladur® Wrinkle MAT TK 6020
- Pladur® Wrinkle MAT TK 8004
- Pladur® Wrinkle MAT TK 3009
- Pladur® Wrinkle MAT TK 8019
- Pladur® Wrinkle MAT TK 7016
- Pladur® Wrinkle MAT TK 7024
- Pladur® Wrinkle MAT TK 9005
- Pladur® Wrinkle MAT TK 8017
Pladur® Relief IceCrystal
- Pladur® Relief iceCrystal TK 6020
- Pladur® Relief iceCrystal TK 8004
- Pladur® Relief iceCrystal TK 3009
- Pladur® Relief iceCrystal TK 8019
- Pladur® Relief iceCrystal TK 7016
- Pladur® Relief iceCrystal TK 7024
- Pladur® Relief iceCrystal TK 9005
SUPERIOR HB
- SUPERIOR HB RAL 8004 HB
- SUPERIOR HB RAL 3009 HB
- SUPERIOR HB RAL 8019 HB
- SUPERIOR HB RAL 7016 HB
- SUPERIOR HB RAL 7024 HB
- SUPERIOR HB RAL 9005 HB
Pladur® Relief Wood
- RAL 9005
Pladur® Wrinkle Mat Plus
- Pladur® Wrinkle Mat Plus 9005
- Pladur® Wrinkle Mat Plus 7016
- Pladur® Wrinkle Mat Plus 8019
Aluminium STUCCO
- RAL 9005
- RAL 7016
- RAL 9019
- RAL 8017
Aluzinc
- Aluzinc 185
Coating
| Protective Cover | Coating Thickness Side A | Environmental Classification | Perforation Warranty | Warranty for paint delamination |
|---|---|---|---|---|
| Poliester Standard matēts INNOVA | 35 μm | C3 | 20 years | 10 years |
| Pladur® Wrinkle Mat Plus | 50 µm | C4 | 60 years | 30 years |
| Pladur® Wrinkle mat | 35 µm | C4 | 45 years - Guarantee against perforation for environmental classification C1-C3 24 years - Guarantee against perforation for environmental classification C4 | 20 years |
| Pladur® Relief IceCrystal | minimum 36 μm | C4 | 55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4 | 20 years |
| Pladur® Relief Textured Wood | Min 36 µm | C4 | 555 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4 | 20 years |
| Poliester standard mat | 35 µm | C3 | 35 years | 15 years |
| Superior HB | 50 µm | C4 | 55 years | 45 years |
